Create Custom Grids. The Ultimate Intersection.

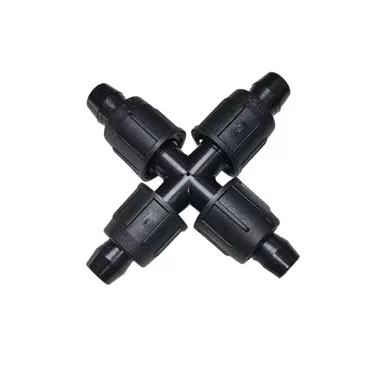

The 1/2″ Easy Loc 4-Way Cross is the professional solution for creating complex grid patterns or intersecting supply lines in your irrigation layout. It allows you to connect four separate pieces of 1/2″ Poly Tubing at a single central point, making it ideal for square foot gardens, greenhouse benches, or dense planting beds.
Instead of using multiple tees to create a junction, this single fitting provides a clean, professional intersection. Featuring Easy Loc technology on all four ports, it ensures that every connection is secure, leak-proof, and capable of withstanding the pressure fluctuations of a dynamic irrigation fittings system.
- Grid Layouts Made Easy: Perfect for creating “manifolds” or grid systems where water needs to be distributed evenly in four directions.
- Secure Locking Technology: The locking nuts screw over the tubing, compressing it against the internal barbs. This ensures all four connection points hold tight.
- Fully Reusable: If you need to reconfigure your garden design, simply unlock the collars and remove the fitting.
- Tool-Free Installation: No clamps, glues, or heat required. The ergonomic nuts are designed for easy hand-tightening.
- UV & Chemical Resistant: Molded from high-grade polypropylene to resist cracking from sun exposure and chemical fertilizers.
Understanding compatibility is key. This fitting connects four lines of 1/2″ tubing.
| Specification | Details |
|---|---|
| Product Type | 1/2″ Easy Loc 4-Way Cross |
| Connections (All 4 Ports) | 1/2″ Easy Loc (Fits .690″ – .710″ OD) |
| Tubing Compatibility | Standard 1/2″ Poly Tubing (.700″ OD) |
| Operating Pressure | 0 – 60 PSI (Optimal range: 20-30 PSI) |
| Material | Polypropylene with Carbon Black/UV Stabilizers |
| MPN | A1-HX600 |
| Common Brand Names | Irritec, Perma-Loc, Power Loc |
Follow these steps to create a secure 4-way junction.
Step 1: Prep Tubing
Ensure all four ends of your 1/2″ poly tubing are cut squarely and are free of dirt.
Step 2: Unlock the Fitting
Rotate all four Easy Loc locking collars backwards (towards the center hub) to expose the internal barbs. Do not remove the nuts completely.
Step 3: Insert Tubing
Push the tubing ends onto the barbs until they hit the internal stops. You may need to wiggle the tubing to get it fully seated.
Step 4: Lock it Down
Twist the locking collars forward over the tubing to clamp each connection. Hand-tighten firmly.
