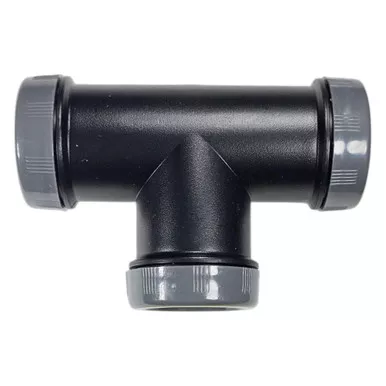

3/4″ Compression Tee

Branch Your Mainline. Maintain Maximum Flow.

The 3/4″ Compression Tee is the standard solution for splitting a high-capacity 3/4″ supply line into two separate directions. Whether you are creating a perimeter loop for a large garden or branching off to feed multiple zones, this fitting allows you to direct water exactly where it is needed without sacrificing volume or pressure.

Designed for heavy-duty applications, this tee features three equal compression ports sized for .940″ OD tubing. As one of our most essential irrigation fittings for large-scale systems, it uses internal rings to grip the tubing securely, creating a permanent, leak-proof connection that installs without the need for glue or clamps.

• High-Flow Branching: Allows you to split your main water source into two 3/4″ runs, ideal for large landscapes, orchards, or vineyards.
• Secure Grip: The internal compression rings bite firmly into the thick .940″ OD tubing, ensuring the fitting stays in place even under pressure surges.
• Tool-Free Installation: A simple push-fit design allows for quick field assembly without the need for solvent welding or hose clamps.
• Durable Construction: Molded from high-impact ABS plastic with UV inhibitors to withstand harsh sunlight and outdoor elements.

Verify tubing dimensions before purchasing.

Installation requires force but no tools.

Step 1: Prep the Tubing
Cut your 3/4″ poly tubing squarely at the point where you want to branch off.
Important Tip: 3/4″ tubing is stiff. Allow the ends to warm in the sun or dip them in hot water for 10-20 seconds to soften the plastic before installing.

Step 2: Connect the Ends
Push the tubing into the compression ports of the tee. Rock the tubing back and forth while pushing firmly until it passes the internal resistance ring (approx. 3/4″ deep).

Step 3: Verify Connection
Ensure all three connections are fully seated against the internal stops to prevent leaks.
