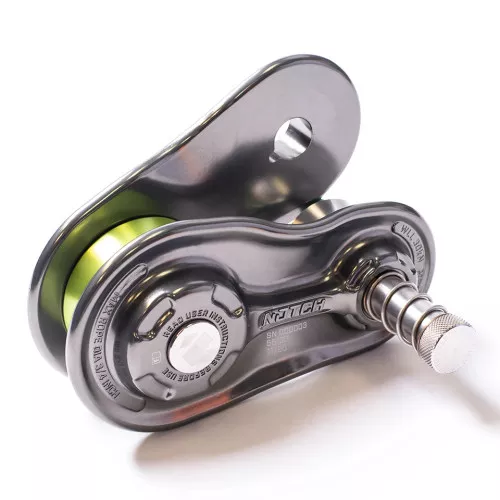

Notch 3/4″ Rigging Spring Block
The Notch Rigging Block accepts up to a 3/4″ rigging line and features rounded edges. The spring action locking pin makes for a secure connection between the side plates and remains captive when open.
Details:
- MBS: 33,700 lbs. (150 kN)
- WLL: 6,740 lbs. (30 kN)
- Hot forged aluminum side plates with rope friendly rounded cheeks
- Precision CNC machined aluminum sheaves with wide bend radii
- Low profile, secure, easy-to-open two stage captive spring pin lock
- High wall, full diameter, improved anchor sling protection
- Wide, concave upper sheave accepts 1-1/8″ anchor slings
- Flared side plates reduce twisting in complex rigging scenarios
