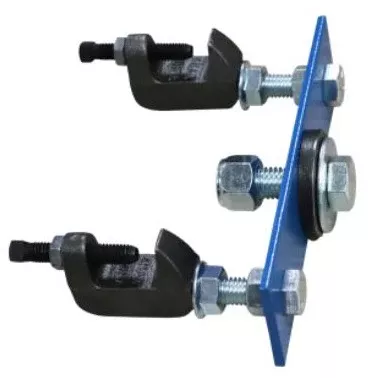

Beam clamp mount for Patterson High Velocity Fans with standard yoke mount.
Directions:
- Place Beam Clamp Mount on webbing or flange.
- Finger tighten set screws then turn additional ¼ to ½ turn to ensure proper engagement. Note: Set screws must engage the sloped side of the I-Beam. Beam Clamps can be reversed if needed.
- Tighten jam nut to prevent loosening from vibrations.
- Mount fan and yoke using provided 5/8” bolt.
- Loop safety cable over beam and through yoke.
- Feed ends of cable into saddle clamps and tighten.
Safety cable included
